SMP-500

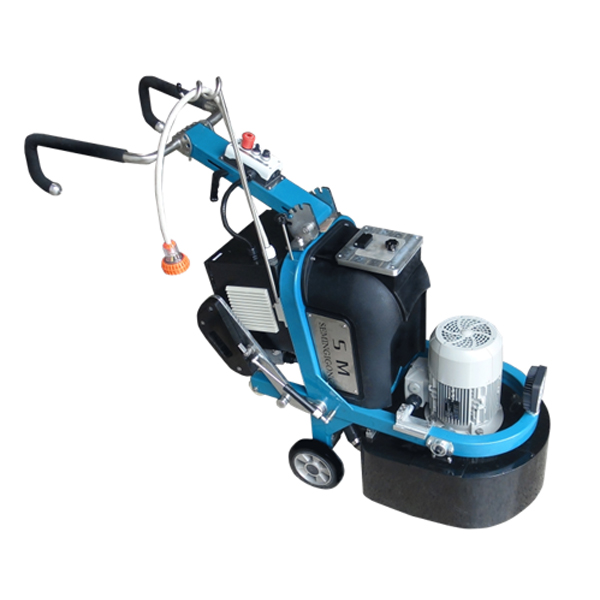

SMP-500 : 5HP Grinder & Polisher
- Medium & small scale site
- Single Phase 220V
- Weight Shifting System
- Lightweight and Convenient
- Ergonomic Design
Description
▣ Overview
SMP-500 is a lightweight and convenient grinder fulfilling performance effect comparable to large machine. It can be used for grinding, surface preparation, polishing. With higher effectiveness, SMP-500 can reach a range of sheen state easily equipped with SM metal tools and SM resin pads. Also, ergonomic design can provide user-friendly environment during work.
▣ Benefits
1. Patented Technology : WSS
WSS (Weight Shifting System) is not only safer for users but also improves work efficiency by putting weight pressure on your desired spot indicated on the diagram. Also, it can serve as footrest as pushing up front part of machine.
2. Lightweight and Convenient
Lightweight SMP-500 exhibits good performance in small space and is easy to operate. Work performance and efficiency of SMP-500 is comparable with heavy-duty grinder.
3.Ergonomic Design
Ergonomic Design of the machine provides user-friendly environment as well as higher productivity.
SMP-500 Specification | ||||||||
| Siemens Motor | Inverter | Voltage | Ampere | Work area | Dust/Water Tank | Weight | Dimension W*L*D | RPM |
| 5.5HP | 7.5HP | Single Phase 220V | 11~13A | 520mm | 20 liter | 220 Kg | 520*1000*1150 | 0 ~ 1200 |
 |  |  | ||
| electric box | 3-head | SMD & SM3ACR | ||
 |  |  | ||
| Main switch | Water Tank | Patent: weights shifting system | ||
