SMP-300

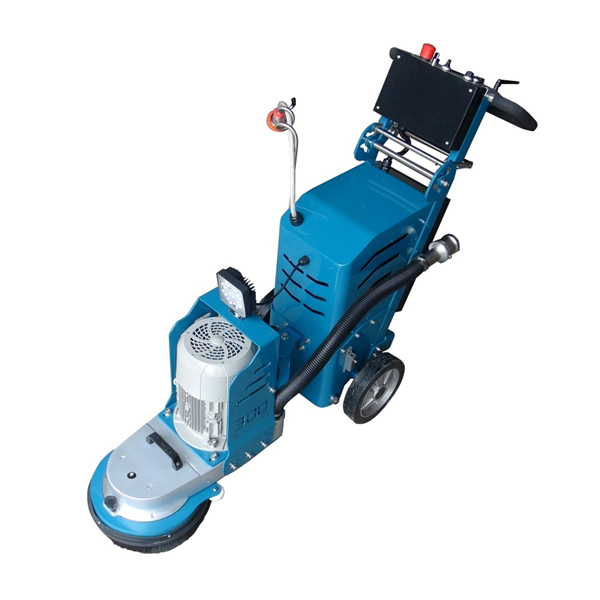

SMP-300 : Edge Grinder & Polisher
- Edge Grinder
- Single Phase 220V
- Adjustable Grinding Heads
- Electrical Lifting System
- Ergonomic Design
Description
▣ Overview
SMP-300 is ideal for edge grinder guaranteeing excellent performance, maximizing effectiveness, saving time, reducing labor cost. Grinding heads are adjustable in three angles and this design can produce greater result equipped with SM metal tools. Foldable parts, adjustable handle and ergonomic design can ensure its easy operation and transportation.
▣ Benefits
1. Adjustable Grinding Heads
Grinding heads are equipped with guiding device, which can move along with grinding plate in a scope of 360 degrees so this leads to higher grinding precision.
2. Electrical Lifting System
This system can adjust the height of abrasives timely during operation, which can ensure grinder's optimal operational capacity.
3.Ergonomic Design
Foldable and adjustable parts of the machine provide user-friendly environment as well as higher productivity.
SMP-300 Specification | ||||||||
| Siemens Motor | Schneider Inverter | Hertz | Voltage | Ampere | Work area | Weight | Dimension W*L*D | RPM |
| 5.5HP | 5.5HP | 50~60Hz | Single phase 220V | 10~12A | 300mm | 120 Kg | 480*1200*900 | 0 ~ 1200 |
 |  |  | ||
Control Panel | Head | SMD & SM3ACR | ||
 |  |  | ||
Guiding Wheel | Adjustable Head | Head | ||
